Sunshine Innovation Sams Surface Grinding Machine

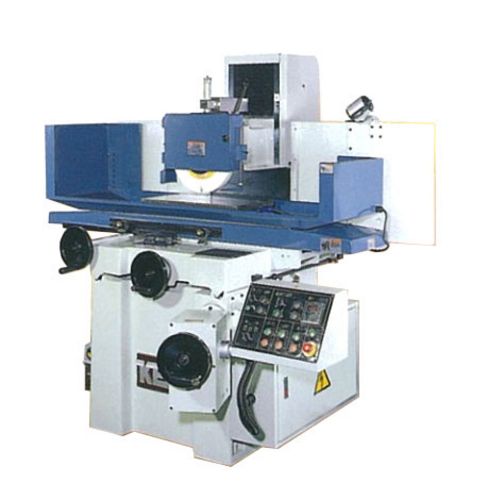

Taiwan KGS-63AHD Precision Surface Grinder

NRSKN002:

New, Taiwan KGS-63AHD Precision Surface Grinder

  • Worktable area 600 x 300mm
  • Longitudinal table travel 710mm
  • Cross feed table travel 340mm
  • Distance from spindle center to table 600mm
  • Table load including magnetic chuck 420mm
  • T-slot 14mm x 1 N
  • Longitudinal table feed 5-25 m/min
  • Power cross feed 1000/1200 mm/min (50 Hz/60 Hz)
  • Hand wheel cross feed: 0.02mm (1 gra); 4mm ( 1 rev)
  • Auto cross feed per stroke 0.25-20 mm
  • Wheel dimension 355 x 38 x 127 mm
  • Spindle speed: 1450/1740 rpm (50 Hz/60 Hz)
  • Vertical on hand wheel 0.01/0.001 mm (1 gra); 2/0.5 mm (1 rev)
  • Auto down feed elevation: 0.005-0.025 mm
  • Power head increment: 133/160 mm/min (50 Hz/60 Hz)
  • Spindle motor 3.7 kw
  • Power elevation motor 0.08 kw
  • Hydraulic motor 1.5 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
