Zhongyang Sams Surface Grinding Machine


Taiwan PSG-3A618 Hydraulic Surface Grinder

NRSES048:

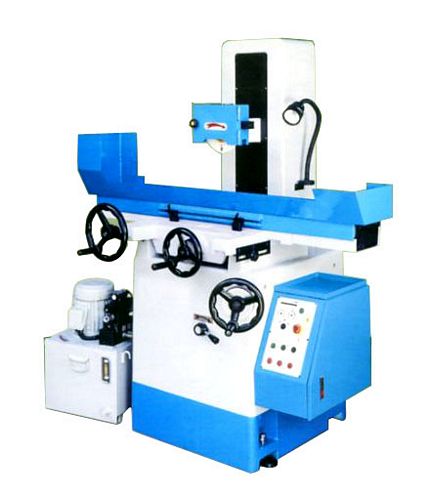

New, Taiwan PSG-3A618 Hydraulic Surface Grinder

  • Table size 150 x 457mm
  • Max grinding length 475mm
  • Max grinding width 160mm
  • Distance from table surface to spindle center 415mm
  • Longitudinal travel: Manual 485mm; Hydraulic 480mm; Table speed 1-25 m/min
  • Cross feed travel: Manual 180mm; Hydraulic 170mm; Continuous feed 1200 mm/min; Handfeed per rev. 5mm; Handfeed per gra. 0.02mm; Intermittent cross feed 0.15-7.5 mm
  • Vertical downfeed: Handwheel per rev. 1mm; Handwheel per gra. 0.005mm; Rapid feed 220 mm/min
  • Grinding wheel size: (dia x width x bore) 180 x 13 x 31.75 mm
  • Spindle speed: (50/60 Hz) 3000/3600 rpm
  • Spindle motor 1.5 HP
  • Crossfeed motor 25 W
  • Hydraulic motor 1HP x 3P
  • Elevated motor 25 W
  • Overall Dimensions: 1,730 mm (L) x 1,300 mm (W) x 2,100 mm (H)
  • Weight approximately 850 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinders), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
