Zhongyang Sams Surface Grinding Machine


Taiwan PSG-618T Surface Grinder

NRSES045:

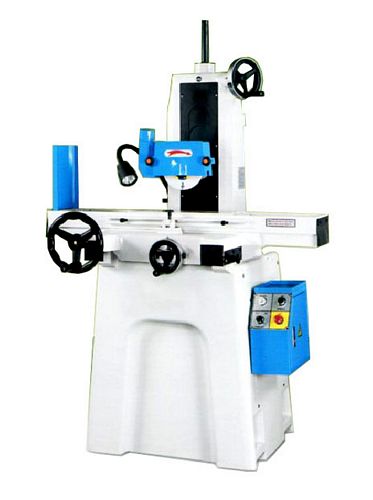

New, Taiwan PSG-618T Surface Grinder

  • Table size 150 x 457mm
  • Max grinding length 457mm
  • Max grinding width 160mm
  • Distance from table surface to spindle center 410mm
  • Longitudinal travel (manual) 480mm
  • Cross feed movement: Manual travel 176mm; Handfeed per rev. 5mm; Handfeed per gra. 0.02mm
  • Vertical downfeed: Handfeed per rev. 1mm, Handfeed per gra. 0.005mm
  • Grinding wheel size (dia x width x bore): 180 x 13 x 31.75 mm
  • Spindle speed: (50 Hz/60 Hz) 3000/3600 rpm
  • Spindle motor 1.5 HP
  • Overall Dimensions: 1,450 mm (L) x 1,100 mm (W) x 2,100 mm (H)
  • Weight approximately 780 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinders), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
