Taiwan ESG-3A818 Hydraulic Precision Surface Grinder

NRSES043:

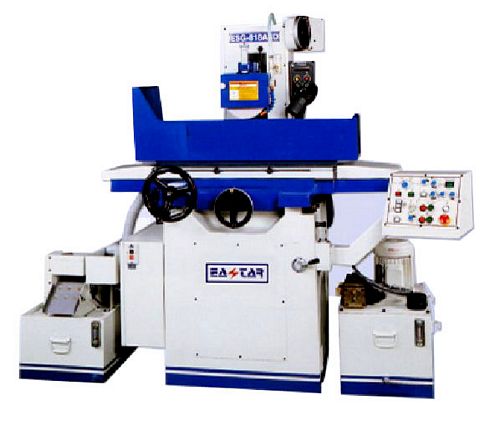

New, Taiwan ESG-3A818 Hydraulic Precision Surface Grinder

  • Working Table Surface 203 x 460mm
  • Max Grinding Length (Longitudinal) 480mm
  • Max Grinding Width (Crosswise) 228mm
  • Max Distance from Table Surface to Spindle Center 460mm
  • Standard Magnetic Chuck Size 200 x 450mm
  • Longitudinal Movement of Table: Max Travel (Hydraulic) 480mm; Max Travel (Manual) 510mm; Max Travel (Infinitely Variable) 5-25 m/min (60 Hz); 5-20 m/min (50 Hz)
  • Cross Transverse Travel: Auto Transverse Increment 1-10 mm; Auto Constant Feeding Speed 20-320 mm/min; Max Auto Transverse Travel 235mm; Handwheel Per Revolution 5mm; Handwheel Per Graduation 0.02 mm
  • Wheelhead Vertical Infeed: Rapid Travel 250 mm/min; Handwheel Revolution 1mm; Handwheel Graduation 0.005mm
  • Grinding Spindle Drive: Speed (60 Hz) 3450 RPM; (50 Hz) 2850 RPM
  • Power Rating 2 HP
  • Standard Grinding Wheel: Diameter 203mm; Width 12.7mm; Bore 31.75mm
  • Hydraulic Motor 1HP x 6P
  • Crossfeed Motor 40W x 6P
  • Elevating Motor 40W x 4P
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinders), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
