Sunshine Innovation Sams Surface Grinding Machine

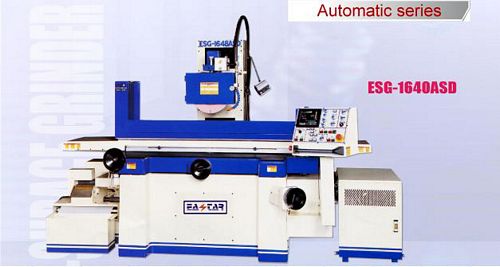

Taiwan ESG-1640ASD Precision Automatic Surface Grinder

NRSES040:

New, Taiwan ESG-1640ASD Precision Automatic Surface Grinder

  • Table size 406mm x 1020mm
  • Without CE norm
  • Max grinding length (longitudinal) 1020mm
  • Max grinding width (crosswise) 410mm
  • Max distance from table surface to spindle 630mm
  • Standard magnetic chuck size 400mm x 1000mm
  • Max travel hydraulic 1060mm; manual 1100mm; infinitely variable 60 Hz 5 - 25 m/min, 50 Hz 5 - 20 m/min
  • Auto transverse increment 1 - 25 mm
  • Auto constant feeding speed 20 - 320 mm/min
  • Transverse travel (auto) 430mm; (manual) 460mm
  • Handwheel per revolution 5mm; per graduation 0.02mm
  • Automatic infeed 0.001 - 0.04 mm
  • Step feed 0.001mm
  • Rapid travel 150mm/min; slow travel 6 mm/min
  • Grinding wheel (dia x width x bore): 355 x 50 x 127 mm
  • Spindle drive (speed): 60 Hz 1750 rpm; 50 Hz 1450 rpm, (power) 5 HP
  • Hydraulic motor 3.0 HP x 6 P
  • Crossfeed motor 80 W x 6 P
  • Elevating motor 1/4 HP X  6P
  • Weight (net) 4000 kgs, (gross) 4500 kgs
  • Overall Dimensions: 3,250 mm (L) x 2,290 mm (W) x 2,220 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
