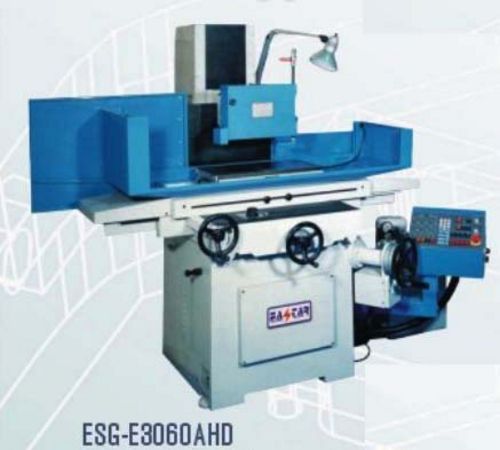

New, Taiwan ESG-E3060AH Precision Surface Grinder
- Working table surface 300 x 600mm
- Max table travel 340 x 700 mm
- Max surface ground 300 x 600 mm
- Max distance of spindle to table 500mm
- Table speed 5 - 25 m/min
- Table guideway: V & flat way
- Auto cross feed increment approx: 0.1 - 20 mm
- Rapid power cross feed approx: 1100 mm/min (60 Hz); 900 mm/min (50 Hz)
- Cross feed on hand wheel: 5 mm/rev, 0.02 mm/gra
- Vertical feed on hand wheel: 2 mm/rev, 0.005 mm/gra
- Wheel speed: (60 Hz) 1750 rpm; (50 Hz) 1450 rpm
- Wheel dimension 355 x 38 x 127 mm
- Spindle motor 5 HP
- Hydraulic pump motor 1 HP
- Auto cross feed motor 1/5 HP
- Overall Dimensions: 2,280 mm (L) x 1,790 mm (W) x 2,060 mm (H)
- Weight approximately 1.7 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
