Zhongyang Sams Surface Grinding Machine


Taiwan ESG-4080AHD Precision Surface Grinder

NRSES027:

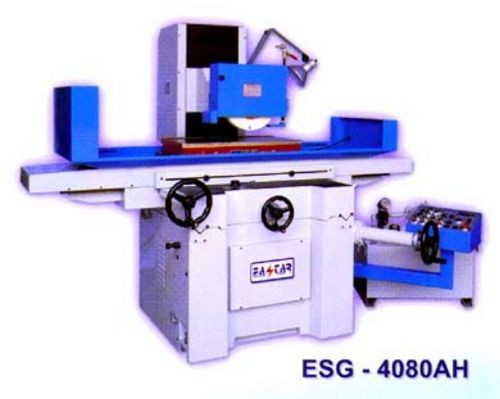

New, Taiwan ESG-4080AHD Precision Surface Grinder

  • Working table surface 800 x 400mm
  • Max table travel 450 x 860mm
  • Max surface ground 400 x 800mm
  • Max distance center of spindle to table 550mm
  • Table speed: 5 - 25 m/min
  • Table guideway V & flat way
  • Auto cross feed increment: 0.1 - 20 mm
  • Rapid power cross feed: 1100 mm/min (60 Hz); 900 mm/min (50 Hz)
  • Rapid power head elevation (60 Hz) 260 mm/min; (50 Hz) 220 mm/min
  • Cross feed on handwheel 5 mm/rev (0.02 mm/gra)
  • Vertical feed on handwheel 1 mm/rev (0.005 mm/gra)
  • Auto down feed 0.001 - 0.099 mm/time
  • Wheel speed (60 Hz) 1750 RPM; (50 Hz) 1450 RPM
  • Wheel dimension 355 x 50 x 127 mm
  • Spindle motor 5 HP
  • Hydraulic pump motor 2 HP
  • Auto cross feed motor 1/5 HP
  • Coolant pump 1/8 HP (optional)
  • Weight approximately 2.7 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinders), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
