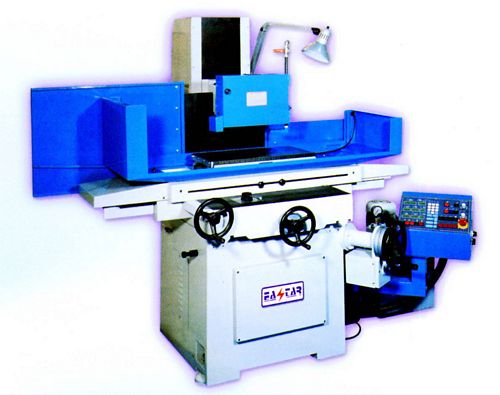

New, Taiwan ESG-3060AHD Precision Surface Grinder
- Working Table Surface 600x300mm
- With X,Y,Z-Axis NC Auto Feed
- Max Table Travel 340x700mm
- Max Surface Ground 300x600mm
- Max Distance of Spindle to Table 500mm
- Table Speed 5-25 m/min
- Table Guideway Vee & Flat Way
- Auto Cross Feed Increment Approximately 0.1mm - 20mm
- Rapid Power Cross Feed Approximately 900mm/min
- Cross Feed on Hand Wheel 5mm/rev, 0.02mm/gra
- Vertical Feed on Hand Wheel 2mm/rev
- Auto Down Feed 0.001mm - 0.099mm / Time
- Wheel Speed 1450 RPM
- Wheel Dimension 180 X 13 X 31.75mm
- Spindle Motor 5HP
- Hydraulic Pump Motor 1HP
- Auto Cross Feed Motor 1/5HP
- Sound Pressure Level Below 78dB
- Overall Dimensions: 3,650 mm (L) x 2,550 mm (W) x 2,060 mm (H)
- Weight approximately 1.7 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
