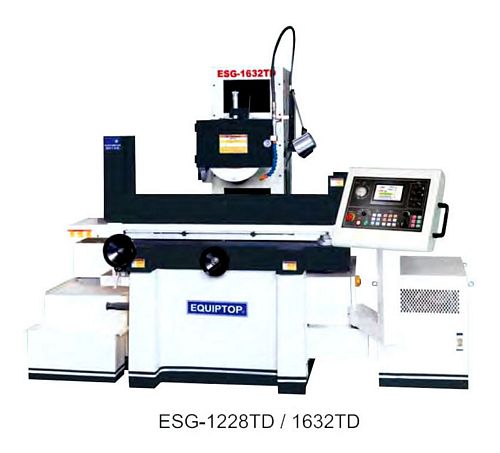

New, Taiwan ESG-1632TD Precision Automatic Surface Grinder
- Table size 406 x 813mm
- Max grinding length (longitudinal) 813mm
- Max grinding width (crosswise) 410mm
- Max distance from table surface to spindle centerline 630mm
- Standard magnetic chuck size 400 x 800mm
- Longitudinal travel: 890mm (hydraulic); 930mm (manual); 60 HZ 5-25m/min; 50 HZ 5-20m/min (infinitely variable)
- Cross transverse travel: 1-25mm (auto increment); 20-320mm/min (auto constant feeding speed); 430mm (auto); 460mm (manual)
- Handwheel: 5mm (per revolution); 0.02mm (per graduation)
- Wheelhead vertical infeed: 0.001-0.05mm (automatic); 0.001mm (step feed); 150mm/min (rapid travel); 6mm/min (slow travel)
- Spindle motor 5 HP; speed (50/60 HZ) 1450/1750 RPM
- Standard grinding wheel: 355 x 50 x 127mm (dia x width x bore)
- Hydraulic motor 3 HP x 6 P
- Crossfeed motor 750 W
- Elevating motor 1/4 HP x 6 P
- Rated power 9.3 HP
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
