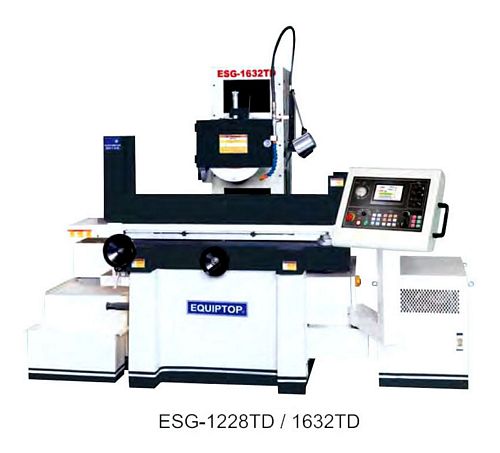

New, Taiwan ESG-1228TD Precision Automatic Surface Grinder
- Table size 305 x 712mm
- Max grinding length (longitudinal) 712mm
- Max grinding width (crosswise) 330mm
- Max distance from table surface to spindle centerline 630mm
- Standard magnetic chuck size 300 x 700mm
- Longitudinal travel: 760mm (hydraulic); 830mm (manual); 60 HZ 5-25m/min; 50 HZ 5-20m/min (infinitely variable)
- Cross transverse travel: 1-25mm (auto increment); 20-320mm/min (auto constant feeding speed); 350mm (auto); 380mm (manual)
- Handwheel: 5mm (per revolution); 0.02mm (per graduation)
- Wheelhead vertical infeed: 0.001-0.05mm (automatic); 0.001mm (step feed); 150mm/min (rapid travel); 6mm/min (slow travel)
- Spindle motor 5 HP; speed (50/60 HZ) 1450/1750 RPM
- Standard grinding wheel: 355 x 50 x 127mm (dia x width x bore)
- Hydraulic motor 3 HP x 6 P
- Crossfeed motor 750 W
- Elevating motor 1/4 HP x 6 P
- Rated power 9.3 HP
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
