Zhongyang Sams Surface Grinding Machine

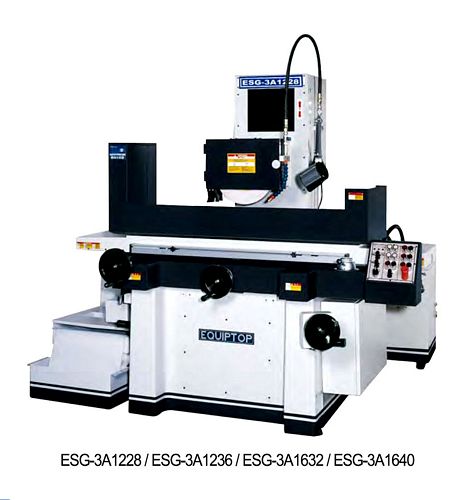

Taiwan ESG-3A1236 Precision Hydraulic Surface Grinder


New, Taiwan ESG-3A1236 Precision Hydraulic Surface Grinder

  • Table size 305 x 915mm
  • Max grinding length (longitudinal) 915mm
  • Max grinding width (crosswise) 330mm
  • Max distance from table surface to spindle centerline 630mm
  • Standard magnetic chuck size 300 x 900mm
  • Longitudinal travel: 960mm (hydraulic); 1000mm (manual); 5-25m/min 60HZ; 5-20m/min 50HZ (infinitely variable)
  • Cross transverse travel: 1-25mm (auto increment); 350mm (auto); 380mm (manual)
  • Handwheel: (per revolution) 5mm;  (per graduation) 0.02mm
  • Wheelhead vertical infeed 150mm/min (rapid)
  • Spindle motor 5 HP; speed (60/50 HZ) 1750/1450 RPM
  • Standard grinding wheel: 355 x 50 x 127 mm (dia x width x bore)
  • Hydraulic motor 3 HP x 6 P
  • Crossfeed motor 80 W x 6 P
  • Elevating motor 1/4 HP x 6 P
  • Rated power 8 1/2 HP
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinders), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
