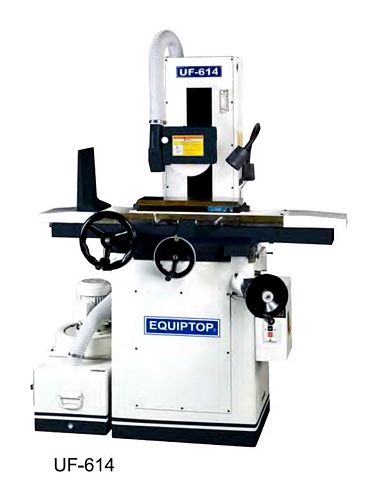

New, Taiwan UF-614 Precision Handfeed Surface Grinder
- Table size 152 x 360mm
- Max grinding length (longitudinal) 380mm
- Max grinding width (crosswise) 178mm
- Max distance from table surface to spindle centerline 406mm
- Standard magnetic chuck size 150 x 350mm
- Longitudinal travel 400mm (manual)
- Cross transverse travel 190mm (manual)
- Handwheel: (per revolution) 5mm; (per graduation) 0.02mm
- Spindle motor 2 HP; speed (60/50 HZ) 3450/2850 RPM
- Standard grinding wheel: 203 x 12.7 x 31.75mm (dia x width x bore)
- Overall Dimensions: 1,120 mm (L) x 1,000 mm (W) x 1,830 mm (H)
- Weight approximately 755 kg
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Surface Grinding Machine Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinders),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
