Sunshine Innovation Sams Surface Grinding Machine


Taiwan ESG-1224TD Precision Automatic Surface Grinder

NRSEQ017:

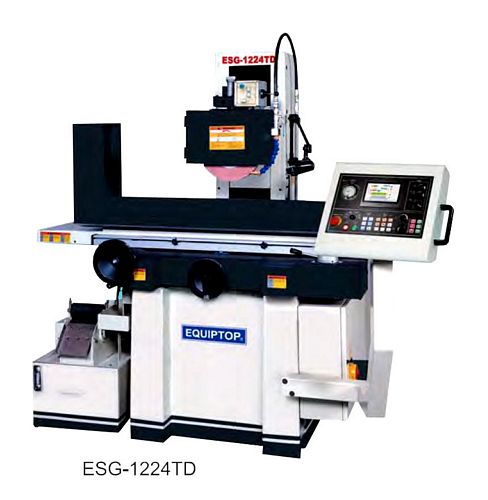

New, Taiwan ESG-1224TD Precision Automatic Surface Grinder

  • Table size 300 x 600mm
  • Max grinding length (longitudinal) 600mm
  • Max grinding width (crosswise) 300mm
  • Max distance from table surface to spindle centerline 585mm
  • Standard magnetic chuck size 300 x 600mm
  • Longitudinal travel: 650mm (hydraulic); 730mm (manual); 60 HZ 5-25m/min; 50 HZ 5-20m/min (infinitely variable)
  • Cross transverse travel: 1-19mm (auto increment); 20-320mm/min (auto constant feeding speed); 310mm (auto); 340mm (manual)
  • Handwheel: 5mm (per revolution); 0.02mm (per graduation)
  • Wheelhead vertical infeed: 0.001-0.05mm (automatic); 0.001mm (step feed); 150mm/min (rapid travel); 6mm/min (slow travel)
  • Spindle motor 5 HP;  speed (50/60 HZ) 1450/1750 RPM
  • Standard grinding wheel: 305 x 31.75 x 76.2mm (dia x width x bore)
  • Hydraulic motor 2 HP x 6 P
  • Crossfeed motor 400 W
  • Elevating motor 80 W
  • Rated power 7.8 HP
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
