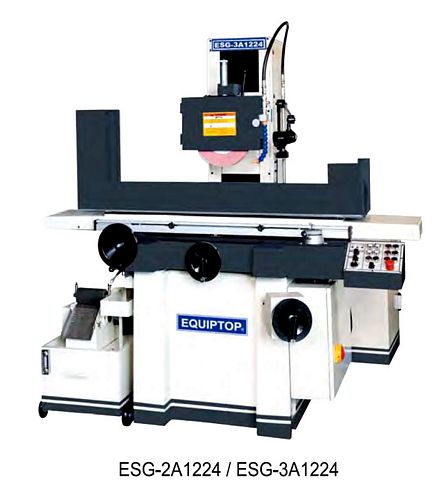

New, Taiwan ESG-3A1224 Precision Surface Grinder
- Table size 300 x 600mm
- Max grinding length (longitudinal) 600mm
- Max grinding width (crosswise) 300mm
- Max distance from table surface to spindle centerline 585mm
- Standard magnetic chuck size 300 x 600mm
- Longitudinal travel: 650mm (hydraulic); 730mm (manual); 5-25m/min 60HZ;
5-20m/min 50HZ (infinitely variable)
- Cross transverse travel: 1-19mm (auto increment); 310mm (auto); 340mm (manual)
- Handwheel: (per revolution) 5mm; (per graduation) 0.02mm
- Wheelhead vertical infeed 150mm/min (rapid)
- Spindle motor 5 HP; speed (60/50 HZ) 1750/1450 RPM
- Standard grinding wheel: 304 x 31.75 x 76.2 mm (dia x width x bore)
- Hydraulic motor 2 HP x 6 P
- Crossfeed motor 80 W x 6 P
- Elevating motor 80 W x 6 P
- Rated power 8 1/4 HP
- Overall Dimensions: 2,480 mm (L) x 2,140 mm (W) x 2,100 mm (H)
- Weight approximately 2.3 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
