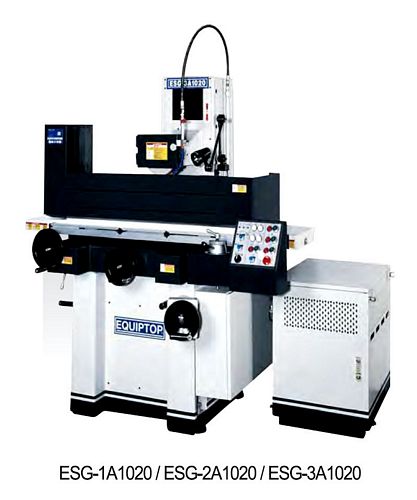

New, Taiwan ESG-3A1020 Precision Surface Grinder
- Table size 254 x 508mm
- Max grinding length (longitudinal) 520mm
- Max grinding width (crosswise) 280mm
- Max distance from table surface to spindle centerline 500mm
- Standard magnetic chuck size 250 x 500mm
- Longitudinal travel: 580mm (hydraulic); 620mm (manual); 5-25m/min 60HZ;
5-20m/min 50HZ (infinitely variable)
- Cross transverse travel: 1-13mm (auto increment); 270mm (auto); 300mm (manual)
- Handwheel: (per revolution) 5mm; (per graduation) 0.02mm
- Wheelhead vertical infeed 150mm/min (rapid)
- Spindle motor 3 HP; speed (60/50 HZ) 1750/1450 RPM
- Standard grinding wheel: 203 x 19 x 31.75 mm (dia x width x bore)
- Hydraulic motor 2 HP x 6 P
- Crossfeed motor 80 W x 6 P
- Elevating motor 80 W x 6 P
- Rated power 5 HP
- Overall Dimensions: 2,480 mm (L) x 2,060 mm (W) x 2,100 mm (H)
- Weight approximately 2.2 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
