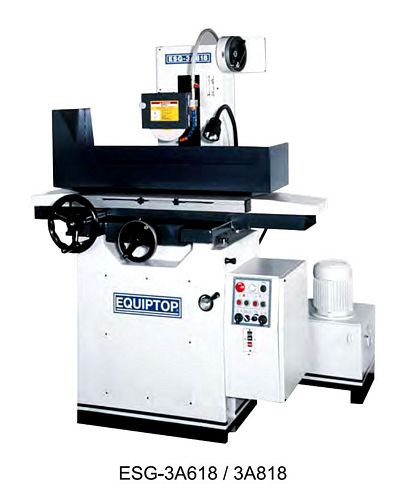

New, Taiwan ESG-3A618 Precision Surface Grinder
- Table size 152 x 460mm
- Max grinding length (longitudinal) 480mm
- Max grinding width (crosswise) 178mm
- Max distance from table surface to spindle centerline 460mm
- Standard magnetic chuck size 150 x 450mm
- Longitudinal travel: 480mm (hydraulic); 510mm (manual); 5-28m/min 60HZ;
5-23m/min 50HZ (infinitely variable)
- Cross transverse travel: 1-10mm (auto increment); 180mm (auto); 195mm (manual)
- Handwheel: (per revolution) 5mm; (per graduation) 0.02mm
- Wheelhead vertical infeed 250mm/min (rapid)
- Spindle motor 2 HP; speed (60/50 HZ) 3450/2850 RPM
- Standard grinding wheel: 203 x 12.7 x 31.75 mm (dia x width x bore)
- Hydraulic motor 1 HP x 6 P
- Crossfeed motor 40 W x 6 P
- Elevating motor 40 W x 4 P
- Rated power 3 HP
- Overall Dimensions: 1,980 mm (L) x 1,420 mm (W) x 1,930 mm (H)
- Weight approximately 1.0 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
