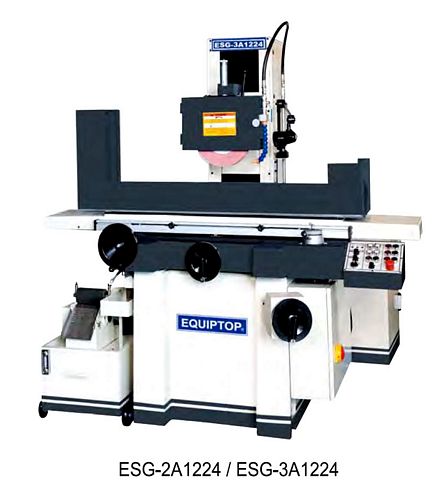

New, Taiwan ESG-2A1224 Precision Surface Grinder
- Table size 300 x 600mm
- Max grinding length (longitudinal) 600mm
- Max grinding width (crosswise) 300mm
- Max distance from table surface to spindle centerline 585mm
- Standard magnetic chuck size 300 x 600mm
- Longitudinal travel: 650mm (hydraulic); 730mm (manual); 5-25m/min 60HZ;
5-20m/min 50HZ (infinitely variable)
- Cross transverse travel: 1-19mm (auto increment); 310mm (auto); 340mm (manual)
- Handwheel: (per revolution) 5mm; (per graduation) 0.02mm
- Spindle motor 5 HP; speed (60/50 HZ) 1750/1450 RPM
- Standard grinding wheel: 304 x 31.75 x 76.2 mm (dia x width x bore)
- Hydraulic motor 2 HP x 6 P
- Crossfeed motor 80 W x 6 P
- Rated power 7.5 HP
- Overall Dimensions: 2,340 mm (L) x 2,130 mm (W) x 2,100 mm (H)
- Weight approximately 2.3 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Surface Grinding Machine Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinders),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
