Surface Grinding Machine

NRSEQ008:

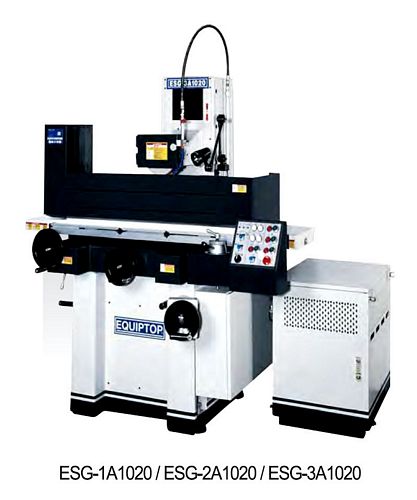

New, Taiwan ESG-2A1020 Precision Surface Grinder

Table size 254 x 508mm
Max grinding length (longitudinal) 520mm
Max grinding width (crosswise) 280mm
Max distance from table surface to spindle centerline 500mm
Standard magnetic chuck size 250 x 500mm
Longitudinal travel: 580mm (hydraulic); 620mm (manual); 5-25m/min 60HZ; 5-20m/min 50HZ (infinitely variable)
Cross transverse travel: 1-13mm (auto increment); 270mm (auto); 300mm (manual)
Handwheel: (per revolution) 5mm; (per graduation) 0.02mm
Spindle motor 3 HP; speed (60/50 HZ) 3450/2850 RPM
Standard grinding wheel: 203 x 19 x 31.75 mm (dia x width x bore)
Hydraulic motor 2 HP x 6 P
Crossfeed motor 80 W x 6 P
Rated power 5 HP
Overall Dimensions: 2,290 mm (L) x 1,830 mm (W) x 2,100 mm (H)
Weight approximately 2.1 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
