Zhongyang Sams Surface Grinding Machine

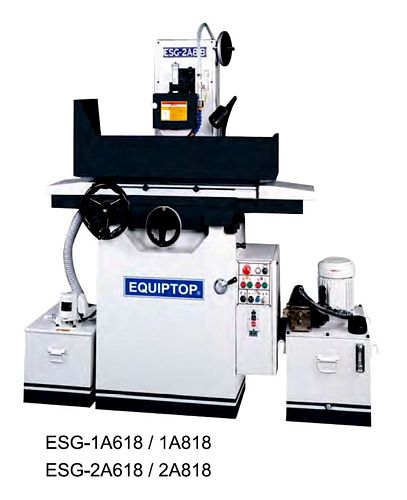

Taiwan ESG-1A818 Precision Surface Grinder


New, Taiwan ESG-1A818 Precision Surface Grinder

  • Table size 203 x 460mm
  • Max grinding length (longitudinal) 480mm
  • Max grinding width (crosswise) 228mm
  • Max distance from table surface to spindle centerline 460mm
  • Standard magnetic chuck size 200 x 450mm
  • Longitudinal travel: 480mm (hydraulic); 510mm (manual); 5-25m/min 60HZ; 5-20m/min 50HZ (infinitely variable)
  • Cross transverse travel 250mm
  • Handwheel: (per revolution) 5mm;  (per graduation) 0.02mm
  • Spindle motor 2 HP; speed (60/50 HZ) 3450/2850 RPM
  • Standard grinding wheel: 203 x 12.7 x 31.75 mm (dia x width x bore)
  • Hydraulic motor 1 HP x 6 P
  • Rated power 3 HP
  • Overall Dimensions: 1,120 mm (L) x 1,000 mm (W) x 1,830 mm (H)
  • Weight approximately 1.3 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinders), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
