Zhongyang Sams Surface Grinding Machine

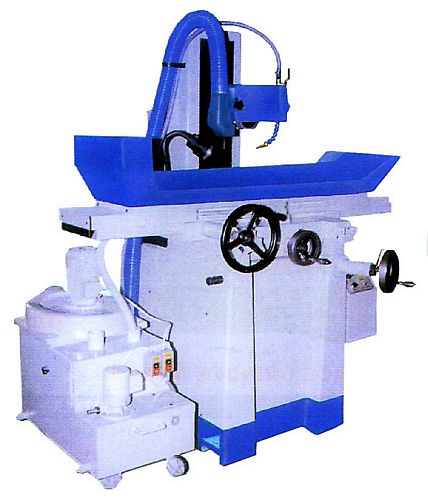

China MJ7120 Horizontal Spindle Surface Grinder

NRSEA004:

New, China MJ7120(MF818) Horizontal Spindle Surface Grinder with Rectangular Table (Manual)

  • Table size 210 x 450mm
  • Maximum length to be ground 500mm
  • Maximum width to be ground 200mm
  • Maximum height to be ground 400mm
  • Maximum longitudinal travel of the table 550mm
  • Maximum cross travel of the table 230mm
  • Maximum distance of table surface to spindle center 500mm
  • Vertical movement of hand feed (per division) 0.005mm
  • Grinding wheel size (O.D. x W x I.D.) 200 x 13 x 31.75 mm
  • Wheel spindle speed 3600 rpm (60Hz), 3000 rpm (50Hz)
  • Power of wheelhead motor 1.5 kW (2HP) / 2P
  • Dimensions: (LxWxH) 2150mm x 1315mm x 1800mm
  • Net weight 900 kgs
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinders), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
