Zhongyang Sams Surface Grinding Machine


China M7130 Horizontal Spindle Surface Grinder

NRSEA002:

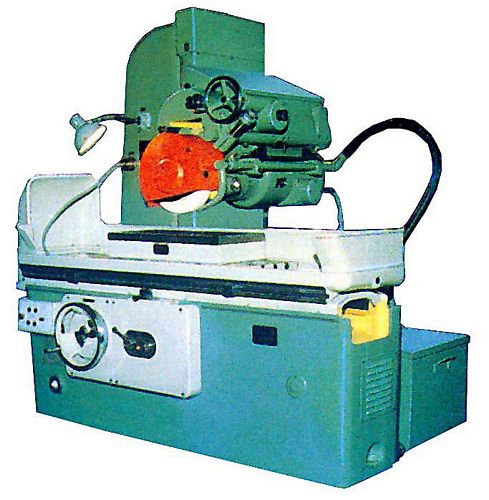

New, China M7130 Horizontal Spindle Surface Grinder

  • Maximum length to be ground 1000mm
  • Maximum width to be ground 300mm
  • Maximum height to be ground 400mm
  • Maximum longitudinal travel of the table 1175mm (by manual or by hydraulic)
  • Speed range of the table 3 - 22 m/min
  • Maximum cross travel of the wheel head (manual/hydraulic) 350mm
  • Maximum vertical travel of wheelhead 500mm
  • Wheelhead vertical feed per division of handwheel 0.01mm
  • Wheel spindle speed (2 steps) 1440mm
  • Hydraulic pump capacity 100 ml/r
  • Hydraulic pump pressure 0.8 - 1.2 Mpa
  • Coolant pump capacity 25 L/min
  • Total power of motors 7.425 kW
  • Power of wheel motor 4.5 kW
  • Dimensions: (LxWxH) 3505mm x 1845mm x 2135mm
  • Nett weight 3500 kgs
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinders), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
