Zhongyang Sams Crankshaft Grinding Machine

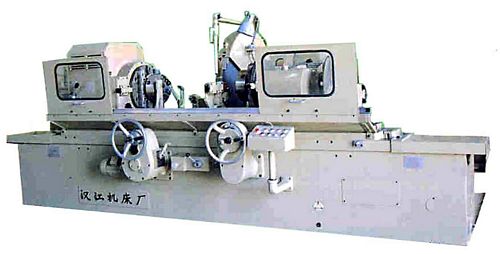

China MQ8260A 1600mm Crankshaft Grinder

NRKSJ001:

New, China MQ8260A 1600mm Crankshaft Grinder

  • Max. Work Diameter 580 mm
  • Max. Work Length 1600 mm
  • Work Diameter Ground with Steady Rest: Dia.30, Dia.100mm
  • Throw of Crankshaft: 110mm
  • Max. Work Length Ground in 3-Jaw Chuck: 1400mm
  • Max. Work Weight: 120kg
  • Centre Height: 300mm
  • Work Speed: 40, 60, 110 r/min
  • Wheelhead Max. Cross Movement: 185mm
  • Wheelhead Rapid Approach and Withdrawal: 100mm
  • Wheelfeed Per Turn of Cross Feed Handwheel: 1mm
  • Per Grad. of Cross Feed Hand Wheel: 0.005mm
  • Grinding Wheel Spindle Speed: 740, 890r/min
  • Wheel Peripheral Speed: 25.6-35m/sec
  • Wheel Size (O.D. x Width x Bore): Dia 900 x 32 x Dia305mm
  • Table Traverse Per Turn of Handwheel: Coarse 5.88mm; Fine 1.68mm
  • Table Swivel (Taper 18/100): 5 Degree
  • Table Swivel Per Grad. of Scale (Taper 1:50): 10’
  • Overall Capacity of Motors: 9.82kW
  • Overall Dimensions: 4,166 mm (L) x 2,037 mm (W) x 1,584 mm (H)
  • Weight approximately 6.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used crankshaft grinding machine (crankshaft grinder, crankshaft grinding machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
