Grinding Machine

NRGES001:

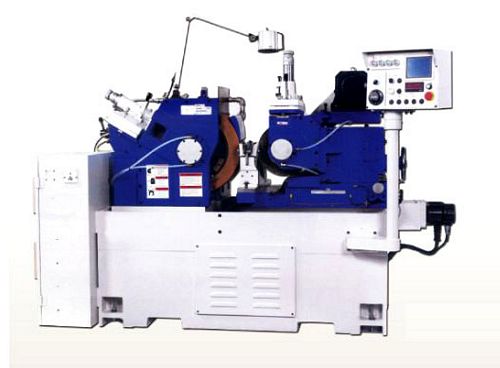

New, Taiwan ETC-1260S Precision Centerless Grinder

Working diameter 1 - 50mm
Grinding wheel (dia x width x bore): 305 x 150 x 120mm
Spindle speeds 1900 RPM
Dressing increment per graduation: 0.02mm, per revolution 2mm
Regulating wheel (dia x width x bore): 205 x 150 x 90mm
Spindle speeds (infinitely variable): 15 - 310 RPM
Handwheel per graduation: 0.04mm, per revolution 4mm
Swivelling angle ±5°
Inclining angle +5 to -3°
Rapid feeding of saddle handwheel: per graduation 0.02mm, per revolution 7mm
Micro feeding of saddle handwheel: per graduation 0.001, per revolution 0.2
Grinding wheel motor 7.5 HP
Hydraulic motor 2 HP
Overall Dimensions: 2,250 mm (L) x 1,670 mm (W) x 1,850 mm (H)
Weight approximately 1.8 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used grinding machine (grinder, grinding machine, toolpost grinder), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
