Zhongyang Sams Cylindrical Grinding Machine

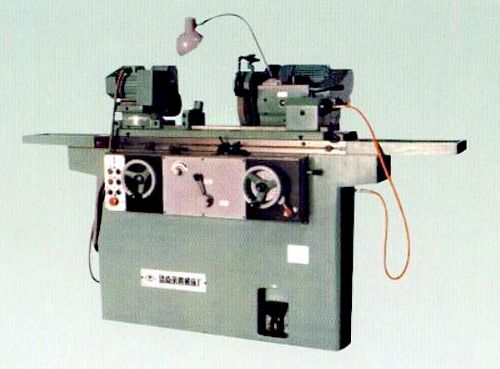

China M1412/500 Universal Cylindrical Grinder


New, China M1412/500 Universal Cylindrical Grinder

  • Center height 100mm
  • Between centers 370/520mm
  • Max diameter to be ground 125mm (external); 40mm (internal)
  • Max length to be ground 500mm (external); 50mm (internal)
  • Recommend diameter to be ground 4 - 50 mm
  • Dimension of grinding wheel 300 x 127 x 20 - 40 mm
  • Linear speed of grinding wheel 35 m/s
  • Min feed of grinding wheel frame 0.0025mm
  • Travel speed of worktable (stepless) 0.05 - 4.5 m/min
  • Working accuracy: Circularity 0.0015 (external); 0.0025 (internal), Cylindricity 0.003/0.005mm (external); 0.005 (internal), Ra surface roughness Ro 0.32 (external); 0.63 (internal)
  • Overall Dimensions: 1,770 mm (L) x 2,240 mm (W) x 1,300 mm (H)
  • Weight approximately 1.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cylindrical grinding machine (cylindrical grinder, internal grinder, external grinder, universal grinder, cylindrical grinding machine, universal grinding machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
