Zhongyang Sams Cylindrical Grinding Machine


China H164 Cylindrical Grinding Machine

NRCSG001:

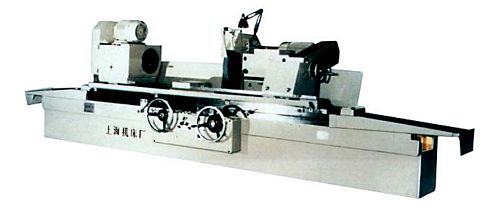

New, China H164 Cylindrical Grinding Machine

  • Grinding diameter 30 - 630mm
  • Max grinding length 2000mm
  • Max workpiece weight 1200 kg
  • Center height 350mm
  • Center distance 2000mm
  • Wheel spindle rotating speed 890 r/min
  • Max wheel peripheral velocity 35 m/s
  • Max wheel diameter (worn to:) 750mm (550mm)
  • Max worktablel longitudinal travel 2000mm
  • Wheelhead feed per div. of handwheel (coarse/fine): 0.02 / 0.0025 mm
  • Worktable hydraulic travel speed 0.1 - 3 m/min
  • Motor 21.77 Kw
  • Overall Dimensions: 5,920 mm (L) x 2,550 mm (W) x 2,150 mm (H)
  • Weight approximately 10 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cylindrical grinding machine (cylindrical grinder, internal grinder, external grinder, universal grinder, cylindrical grinding machine, universal grinding machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
