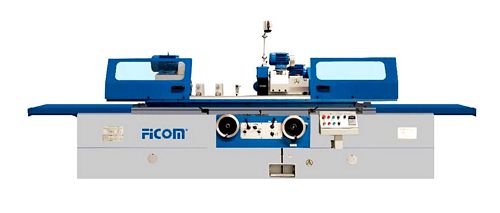

New, China M1432B x 2000 Universal Cylindrical Grinding Machine
- Between centers 2000mm
- Center height 180mm
- Diameter ground: (OD) 8-320mm; (ID) 30-100mm
- Max length ground: (OD) 2000mm; (ID) 125mm
- Max weight of workpiece 150 kg
- Spindle speeds: 25-220 r/min stepless (50 Hz)
- Work head swivel angle +90°
- Center taper MT 4
- Wheel spindle speed 1670 r/min
- Wheel head rapid travel 50mm; max travel 246mm
- Wheel head swivel angle ±30°
- Hand feed per rev: (rough) 2; (fine) 0.5
- Hand feed per gra: (rough) 0.01; (fine) 0.0025
- Wheel size: (OD x W x ID) 400 x 50 x 203 mm
- Peripheral velocity 35 m/s
- Internal grinding spindle speed 10,000/15,000 r/min
- Dimension of wheel: (max.) 50 x 25 x 13 mm; (min.) 17 x 20 x 6 mm
- Table hand feed per rev. 6mm
- Max swivel angle of table: 2° (clockwise); (anti-clockwise) 5°
- Longitudinal speed range of table 0.1-4 m/min
- Tailstock center taper MT 4
- Quill travel 30mm
- Wheel head motor 5.5 kw
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
