China MW1420 x 500 Universal Cylindrical Grinding Machine

NRCNJ003:

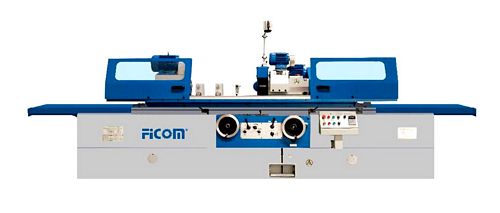

New, China MW1420 x 500 Universal Cylindrical Grinding Machine

  • Between centers 500mm
  • Center height 135mm
  • Diameter ground: (OD) 5-200mm; (ID) 25-100mm
  • Max length ground: (OD) 500mm; (ID) 125mm
  • Max weight of workpiece 100 kg
  • Spindle speeds: 25-380 r/min stepless (50 Hz)
  • Work head swivel angle +90°
  • Center taper MT 4
  • Wheel spindle speed 1670 r/min
  • Wheel head rapid travel 50mm; max travel 205mm
  • Wheel head swivel angle ±10°
  • Hand feed per rev: (rough) 2; (fine) 0.5
  • Hand feed per gra: (rough) 0.01; (fine) 0.0025
  • Wheel size: (OD x W x ID) 400 x 50 x 203 mm
  • Peripheral velocity 35 m/s
  • Internal grinding spindle speed 10,000/15,000 r/min
  • Dimension of wheel: (max.) 50 x 25 x 13 mm; (min.) 17 x 20 x 6 mm
  • Table hand feed per rev. 6mm
  • Max swivel angle of table: 3° (clockwise); (anti-clockwise) 9°
  • Longitudinal speed range of table 0.1-4 m/min
  • Tailstock center taper MT 4
  • Quill travel 30mm
  • Wheel head motor 4 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cylindrical grinding machine (cylindrical grinder, internal grinder, external grinder, universal grinder, cylindrical grinding machine, universal grinding machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
