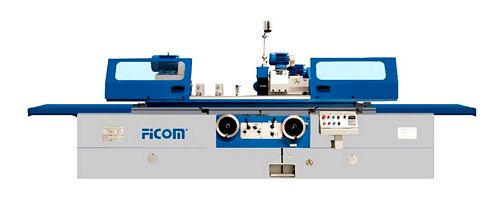

China M1420 x 520 Universal Cylindrical Grinding Machine


New, China M1420 x 500 Universal Cylindrical Grinding Machine

  • Between centers 500mm
  • Center height 118mm
  • Diameter ground: (OD) 8-200mm; (ID) 13-80mm
  • Max length ground: (OD) 520mm; (ID) 125mm
  • Max weight of workpiece 50 kg
  • Spindle speeds: 60, 85, 230 r/min
  • Work head swivel angle +90°
  • Center taper MT 3
  • Wheel spindle speed 1820 r/min
  • Wheel head rapid travel 20mm; max travel 150mm
  • Wheel head swivel angle -180 - +30°
  • Hand feed: per rev 1; per gra. 0.00125
  • Wheel size: (OD x W x ID) 400 x 40 x 203 mm
  • Peripheral velocity 35 m/s
  • Internal grinding spindle speed 14,000 r/min
  • Dimension of wheel: (max.) 50 x 25 x 13 mm; (min.) 17 x 20 x 6 mm
  • Table hand feed per rev. 6mm
  • Max swivel angle of table: 5° (clockwise); (anti-clockwise) 9°
  • Longitudinal speed range of table 0.1-4 m/min
  • Tailstock center taper MT 3
  • Quill travel 25mm
  • Wheel head motor 3 kw
  • Grinding motor 3 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cylindrical grinding machine (cylindrical grinder, internal grinder, external grinder, universal grinder, cylindrical grinding machine, universal grinding machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
