Zhongyang Sams Cylindrical Grinding Machine


Taiwan UH-500/ 2000 Universal Cylindrical Grinder

NRCES003:

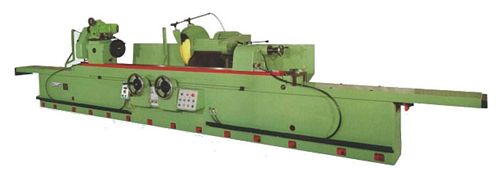

New, Taiwan UH-500/ 2000 Universal Cylindrical Grinder

  • Taiwan UH-500/ 2000 Universal Cylindrical Grinder
  • Distance between center 2000 mm
  • Wheelhead:       Standard wheel size 660 OD x 63-1/2 x 203 ID       Hydraulic rapid feed stroke 60 mm       Total amount of hand feet 290 mm       Feed for graduation 0.0025 mm       I revolution of handwheel 1mm
  • Headstock Work center taper    # 5  MT
  • Headstock Work spindle speeds  RPM 10 - 100
  • Tailstock  Work center taper  # 5 MT
  • Tailstock Spindle stroke 55 mm
  • Table       Traverse speed 30 - 2000       Traverse per turn of handwheel 4.5 mm       Total swivelling angle 6
  • Workrest Capacity type 500    80 - 152 mm
  • Motors       Grinding wheel 15 hp       Workhead Spindle 3 hp       Hydraulic pump 3 hp       Lubrication pump 1/4 hp       Coolant pump 1/4 hp
  • Overall Dimensions: 5,370 mm (L) x 2,450 mm (W) x 2,190 mm (H)
  • Weight approximately 7.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cylindrical grinding machine (cylindrical grinder, internal grinder, external grinder, universal grinder, cylindrical grinding machine, universal grinding machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
