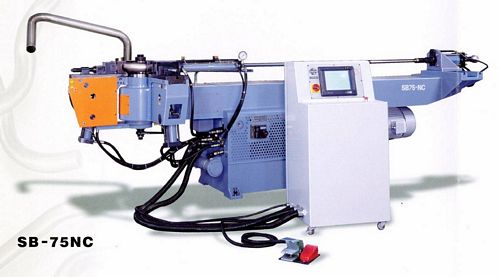

New, Taiwan SB-75NC Hydraulic Rotary Bender
- NC Control with Touch Screen
- Max Tube OD (mild steel) 76.2 x 2.1 x CLR1.5D
- Max Tube OD (mild steel) 69.85mm x 3mm x CLR 1.5 D
- Max Tube OD (stainless steel) 69.85mm x 1.9mm x CLR 1.5 D
- Max Rectangular Tube (mild steel) 75mm x 45mm x 2.3mm thickness
- Max Tube Length with Mandrel 2850mm
- Max Bending Radius 250mm
- Max Bending Angle 185 degrees
- Max Hydraulic Pressure 140 kg/cm^2
- Max Power for Hydraulic System 15 HP
- Overall Dimensions: 3,760 mm (L) x 1,960 mm (W) x 1,230 mm (H)
- Weight approximately 2.4 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
