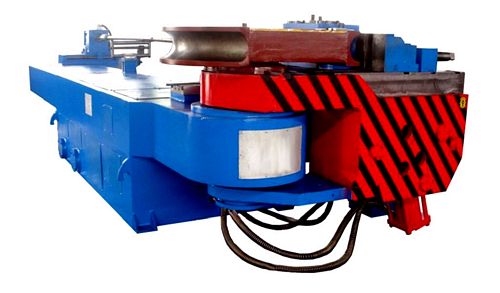

China W27YPC-133x12 Hydraulic Pipe Bending Machine

NOUDX018:

New, China W27YPC-133x12 Hydraulic Pipe Bending Machine

  • Max torque 185,000 N.m
  • Max OD pipe x thickness: Ø133 x 12mm
  • Min bend pipe OD Ø38mm
  • Bending radius R55-R650mm
  • Max bend angle 195°
  • Bend speed 1.25 r/min
  • Gyration speed 3.27 r/min
  • No. of bending angles 16
  • Motor 22 kw; 1450 r/min
  • Oil pressure 55 L/min
  • Overall Dimensions: 6,000 mm (L) x 2,200 mm (W) x 1,600 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
