Zhongyang Sams Pipe Bending Machine

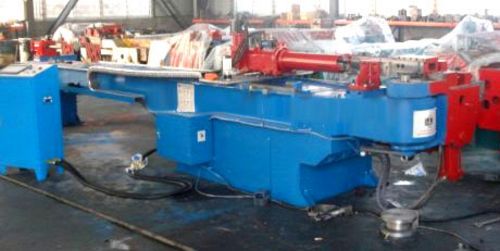

China W28K-114CNC Pipe Bender

NOUDX015:

New, China W28K-114CNC Pipe Bender

  • Max rotary distance 150,000 N
  • Max bend x thickness: Ø114 x 8mm
  • Min bend Ø38mm
  • Bending radius R30-R600 mm
  • Max bend angle 195°
  • Bend speed 1.25 r/min
  • Return speed 3.27 r/min
  • Motor 18.5 kw
  • Pump flow 55 L/min
  • Pump pressure 21 Mpa
  • Full tank capacity 3000 L
  • Overall Dimensions: 5,800 mm (L) x 1,800 mm (W) x 1,600 mm (H)
  • Weight approximately 6.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
