Pipe Bending Machine

NOUDX011:

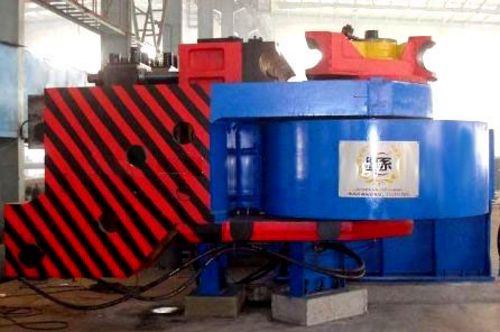

New, China W27YPC-325x20 PLC Hydraulic Tube Bender

Max torque 1,846,300 N.m
Max OD pipe x thickness: Ø325 x 20mm
Min OD pipe Ø114mm
Bending radius R360-R1700 mm
Max bending angle 195°
Bending speed 0.204 r/min
Gyration speed 1.2 r/min
No. of bending angles 16
Motor 55 kw; 1450 r/min
Oil pressure flowing speed 95 L/min
Oil working pressure 25 MPa
Overall Dimensions: 14,800 mm (L) x 4,500 mm (W) x 4,500 mm (H)
Weight approximately 75 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
