Zhongyang Sams Pipe Bending Machine


China W27YPC-219x18 PLC Hydraulic Tube Bender

NOUDX009:

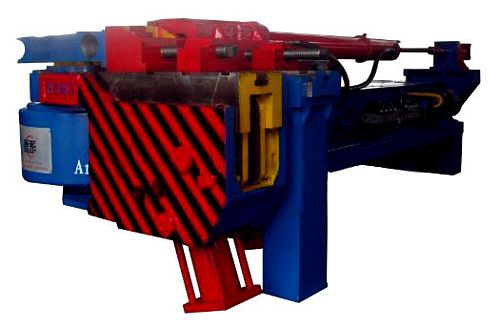

New, China W27YPC-219x18 PLC Hydraulic Tube Bender

  • Max torque 320,000 N.m
  • Max OD pipe x thickness: Ø219 x 18
  • Min bend OD Ø60mm
  • Bending radius R200-R1000 mm
  • Max bending angle 195°
  • Bending speed 0.5 r/min
  • Gyration speed 2.0 r/min
  • No. of bending angles 16
  • Motor 45 kw; 1450 r/min
  • Oil pressure flowing speed 84 L/min
  • Overall Dimensions: 8,000 mm (L) x 2,700 mm (W) x 1,800 mm (H)
  • Weight approximately 21 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
