Zhongyang Sams Pipe Bending Machine

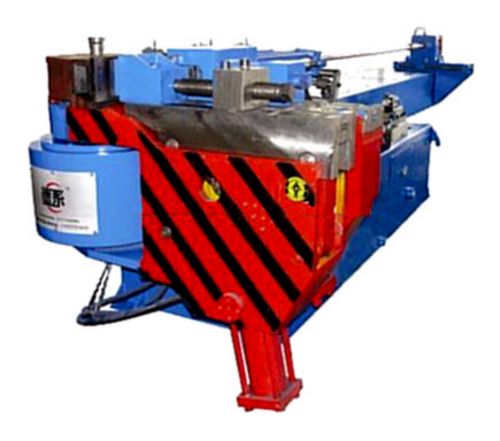

China W27YPC-89x8 PLC Hydraulic Tube Bender


New, China W27YPC-89x8 PLC Hydraulic Tube Bender

  • Max torque 50,000 N.m
  • Max OD x thickness: Ø89 x 8mm
  • Min bend OD Ø20mm
  • Bending radius R50-R500 mm
  • Max bending angle 195°
  • Bending speed 3.1 r/min
  • Gyration speed 4.2 r/min
  • No. of bending angles 16
  • Motor 11 kw; 1450 r/min
  • Oil pressure flowing speed 35 L/min
  • Oil working pressure 12 Mpa
  • Overall Dimensions: 4,000 mm (L) x 1,400 mm (W) x 1,100 mm (H)
  • Weight approximately 3.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
