Zhongyang Sams Pipe Bending Machine

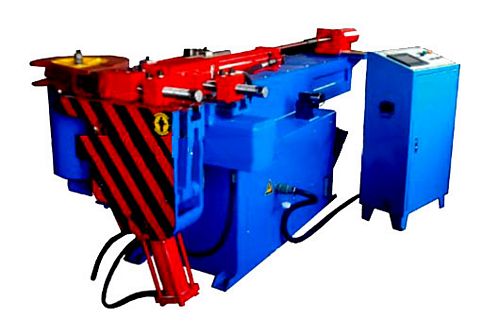

China W27YPC-60x5 PLC Hydraulic Tube Bender

NOUDX002:

New, China W27YPC-60x5 PLC Hydraulic Tube Bender

  • Max torque 7800 N.m
  • Max pipe OD x thickness: Ø60 x 5mm
  • Min bend pipe OD Ø10mm
  • Bending radius R30-R300 mm
  • Max bending angle 195°
  • Bending speed 3.1 r/min
  • Gyration speed 4.2 r/min
  • No. of bending angles 16
  • Motor 5.5 kw; 960 r/min
  • Oil pressure flowing speed 31.5 L/min
  • Oil working pressure 6 Mpa
  • Overall Dimensions: 2,800 mm (L) x 1,400 mm (W) x 1,000 mm (H)
  • Weight approximately 1.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
