Zhongyang Sams Pipe Bending Machine

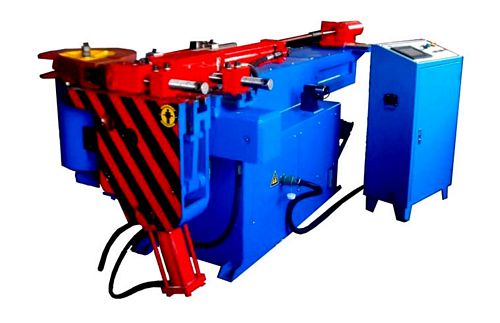

China W27YPC-38x4 PLC Hydraulic Tube Bender


New, China W27YPC-38x4 PLC Hydraulic Tube Bender

  • Max torque 5000 N.m
  • Max pipe OD x thickness: Ø38 x 4mm
  • Min pipe OD Ø5mm
  • Bending radius R30-R200 mm
  • Max bending angle 195°
  • Bending speed 0-5 r/min
  • Gyration speed 0-8 r/min
  • No. of bending angles 16
  • Motor 3 kw; 1450 r/min
  • Oil pressure flowing speed 23 L/min
  • Oil working pressure 6 Mpa
  • Overall Dimensions: 2,000 mm (L) x 900 mm (W) x 1,000 mm (H)
  • Weight approximately 1.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
