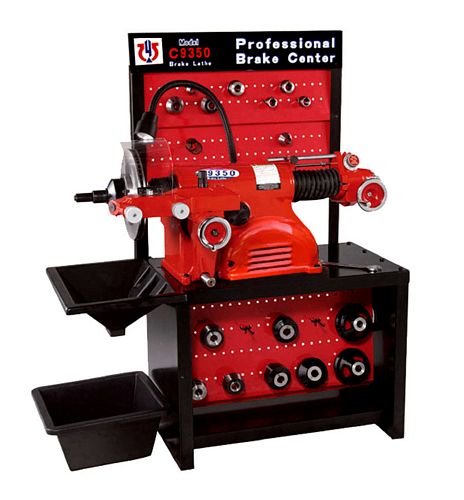

China C9350 Brake Lathe


New, China C9350 Brake Lathe

  • Spindle travel 175mm
  • Spindle speed 70, 88, 118 rpm
  • Spindle feed speed 0.05-0.5 mm/rev
  • Cross feed speed 0.05-0.5 mm/rev
  • Handwheel graduations 0.05mm
  • Rotor diameter 180-381mm
  • Rotor thickness 48mm
  • Drum diameter 152-711mm
  • Drum depth 175mm
  • Voltage 220V/1PH/50Hz
  • Overall Dimensions: 970 mm (L) x 920 mm (W) x 1,140 mm (H)
  • Weight approximately 290 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used machinery, accessories (tools, accessories, special machinery), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
