China AT300/4 Multi-Purpose Machine

NOOEA007:

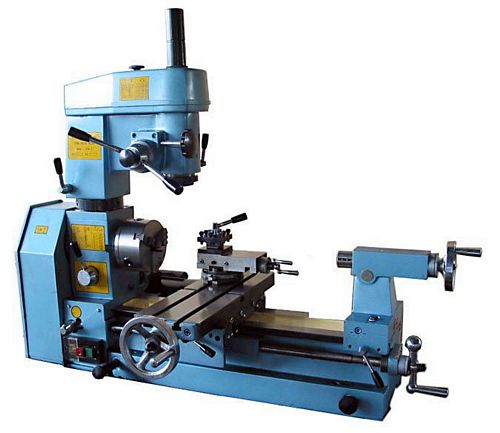

New, China AT300/4 Multi-Purpose Machine

  • Max. swing diameter over bed 300mm
  • Max. length of workpiece 470mm
  • Swing diameter over tool carrier 140mm
  • Spindle bore 26mm
  • Taper of hole in spindle morse No. 4
  • Max. cross stroke over tool carrier 160mm
  • Max. longitudinal stroke over small tool carrier 80mm
  • Metric thread pitch on processing 0.5 - 3mm, off 14
  • Inch thread pitch on processing 11 - 40 in, off 20
  • Longitudinal feed on spindle tool carrier 0 075 - 0.15 mm/r
  • Max. stroke on taper hole 40mm
  • Taper of hole in tailstock No. 3
  • Spindle speed 160 - 1600 rpm, off 6
  • Max. drilling capacity 15mm
  • Distance from bench to spindle nose 250mm
  • Distance from spindle axis to columns 175mm
  • Swivel-angle of the milling case around the columns 360°
  • Milling drilling bits case vertical lifting 80mm
  • Spindle speed scope 125 - 1600 rpm, off 12
  • Area of bench (LxW) 425mm x 150mm
  • Width of ’T’ shape groove on bench 12mm
  • Stroke on spindle hole 80mm
  • Electric motor 550W, 220V, 50Hz (110V 60 Hz)
  • Overall Dimensions: 1,067 mm (L) x 660 mm (W) x 889 mm (H)
  • Weight approximately 190 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used machinery, accessories (tools, accessories, special machinery), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
