Zhongyang Sams Vertical Milling Machine

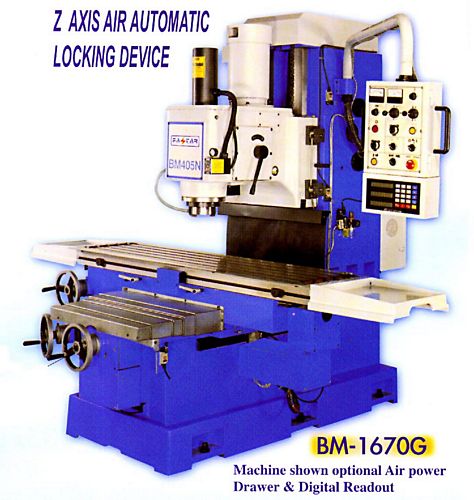

Taiwan BM-1670G Bed Type Milling Machine


New, Taiwan BM-1670G Bed Type Milling Machine

  • Table size 405 x 1800mm
  • Travel X/Y/Z: 1300mm / 600mm / 600mm
  • Longitudinal/cross automatic feed 0 - 1500 mm/min, variable speeds
  • Longitudinal/cross rapid traverse table 1500 mm/min
  • Vertical automatic feed table 0 - 1500mm/min, variable speeds
  • Spindle taper ISO50
  • Spindle speed (2 steps)- 0 - 3600 rpm, variable speeds
  • Distance from spindle center to column surface 550mm
  • Spindle driving motor 10 HP 6P Inverter Motor
  • Longitudinal/cross feeding motor 2 HP
  • Z axis rapid lifting motor 2 HP
  • Coolant pump motor 1/6 HP
  • Standard Accessories: Square (Y) & (Z) axis slide ways, Harden/Ground slide ways, Saddle coated with Turcite-B on X & Y axis, Servo motor driving auto feed on X, Y, Z axis, Electric control box and panel, Coolant pump, Counter balancing weight, Automatic lubrication system, Halogen lamp
  • Overall Dimensions: 1,910 mm (L) x 2,300 mm (W) x 2,500 mm (H)
  • Weight approximately 4.3 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical milling machine (vertical miller, vertical milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
