Taiwan BM-1357T Bed Type Milling Machine

NMVES005:

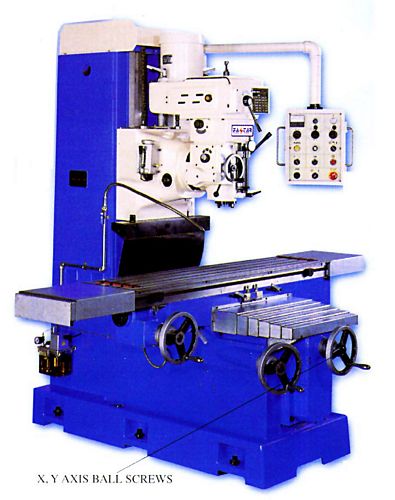

New, Taiwan BM-1357T Bed Type Milling Machine

  • Table size 330 x 1450mm
  • Distance from spindle nose to table 100 - 700mm
  • Longitudinal travel (X) 1070mm, Cross travel (Y) 520mm, Vertical travel (Z) 600mm
  • Longitudinal/cross automatic feed 0 - 1500 mm/min, variable speeds
  • Rapid longitudinal/cross traverse table 1500 mm/min
  • Vertical automatic feed table 0 - 1500mm/min, variable speeds
  • Spindle taper ISO40
  • Spindle speeds - 20 speeds 32 - 3000 rpm (50 Hz)
  • Stroke of quill 140mm
  • Quill power feed rate 0.045, 0.125, 0.075 mm/rev
  • Distance from spindle center to column 500mm
  • Swivelling angle of head (R&L) +- 45°
  • Spindle driving motor 5 HP - 2P, 3 HP - 4 P
  • Longitudinal/cross feeding motor 1.5 HP
  • Z axis feeding motor 1.5 HP
  • Coolant pump motor 1/6 HP
  • Standard Accessories: Square (Y) & (Z) axis slide ways, Harden/Ground slide ways, Saddle coated with Turcite-B on X & Y axis, Servo motor driving auto feed on X, Y, Z axis, Electric control box and panel, Coolant pump, Counter balancing weight, Automatic lubrication, Halogen lamp
  • Overall Dimensions: 1,600 mm (L) x 2,060 mm (W) x 2,450 mm (H)
  • Weight approximately 3.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical milling machine (vertical miller, vertical milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
