Zhongyang Sams Vertical Milling Machine

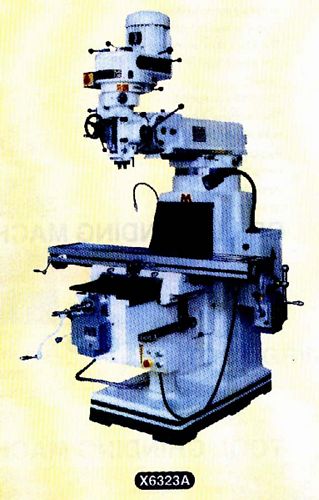

Taiwan X6323A - 9"x42" Turret Miller


New, Taiwan X6323A - 9"x42" Turret Miller

  • Working table 9" x 42"
  • Longitudinal travel 660mm
  • Cross travel 335mm
  • Vertical travel 350mm
  • Spindle hole taper R8, ISO30 or ISO40
  • Spindle travel 127mm
  • Power dial feed 0.04mm, 0.08mm, 0.13mm
  • Spindle speed - variable speeds 60 - 4200, 16 speeds 80 - 5440
  • Spindle motor 2.25 kW / 3HP
  • Y-axis 55° swallow tail guideway
  • Z-axis 55° swallow tail guideway
  • Structure of fore and after of the head flexible
  • Overall Dimensions: 1,580 mm (L) x 1,450 mm (W) x 2,000 mm (H)
  • Weight approximately 1.2 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical milling machine (vertical miller, vertical milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
