Zhongyang Sams Vertical Milling Machine


China X6323 Turret Vertical Miller

NMVEA003:

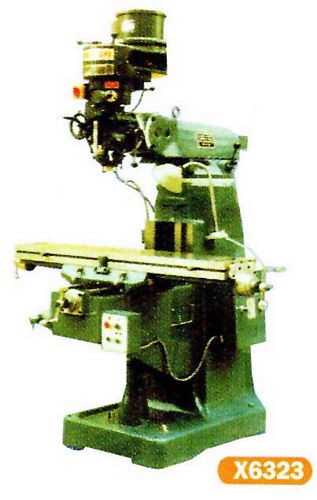

New, China X6323 (9"x49") Turret Vertical Miller

  • Working table 230mm x 1244mm
  • Longitudinal travel 838mm
  • Cross travel 305mm
  • Vertical travel 380mm
  • Ram travel 305mm
  • Spindle hole taper R8, ISO 30 or ISO 40
  • Spindle travel 127mm
  • Spindle power feed rate 0.04, 0.08, 0.15 mm/rev
  • Range of spindle speed: Variable speed change 60 - 4200 mm
  •                                        16 steps ranging 80 - 5440 mm
  • Spindle motor 2.25 kW / 3 HP
  • Dimensions: (LxWxH) 1580mm x 1450mm x 2000mm
  • Weight 1000 kgs
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical milling machine (vertical miller, vertical milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
