Zhongyang Sams Universal Milling Machine


China XS5763/2 Ram Type Universal Milling Machine

NMUZC001:

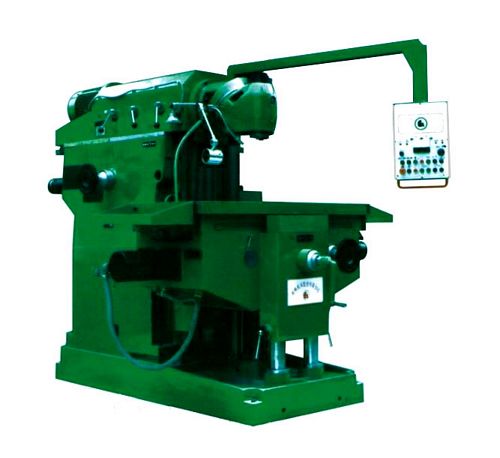

New, China XS5763/2 Ram Type Universal Milling Machine

  • Working table (LxW) 2000 x 630mm
  • T-slot 7; (width x distance) 22 x 80mm
  • Longitudinal travel 1500mm
  • Cross travel 800mm
  • Vertical travel 500mm
  • Min distance between spindle nose and table surface 40mm
  • Swivel angle of milling head 360°
  • Spindle taper ISO 50
  • Spindle speed 36-1820 rpm, off 18
  • Feed range of table and ram: Longitudinal 10-1000; Cross 10-1000; Vertical 5-500 mm/min
  • Rapid feed of table and ram: Longitudinal 3000; Cross 3000; Vertical 1500mm
  • Resolution of digital display 0.05mm
  • Positioning accuracy  0.05mm
  • Reset accuracy 0.01mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used universal milling machine (universal miller, universal milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
