Zhongyang Sams Universal Milling Machine

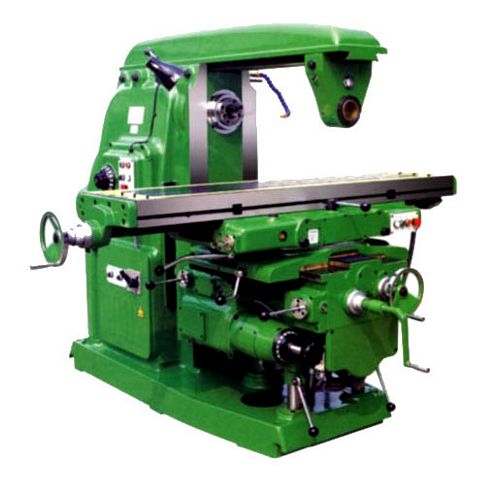

China X6140 Universal Knee-Type Milling Machine

NMUTT003:

New, China X6140 Universal Knee-Type Milling Machine

  • Table size 1700 x 400mm
  • Longitudinal travel (X): Manual 900mm; Auto 880mm
  • Transverse travel (Y): Manual 315mm; Auto 300mm
  • Vertical travel (Z): Manual 380mm; Auto 360mm
  • T-slot (no./width/distance) 3/18/90
  • Max load of table 800 kg
  • Cutting feed speed: (X,Y) 23.5-1180 mm/min; (Z) 8-394 mm/min
  • Rapid feed speed: (X,Y,Z) 2300/2300/770 mm/min
  • Spindle speed range 30-1500 rpm (18 steps)
  • Distance between spindle axis and table surface 30-410 mm
  • Spindle motor 11 kw
  • 3 axis DRO
  • Overall Dimensions: 2,558 mm (L) x 2,159 mm (W) x 1,800 mm (H)
  • Weight approximately 3.9 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used universal milling machine (universal miller, universal milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
