Zhongyang Sams Universal Milling Machine


China X6132 Universal Knee-Type Milling Machine

NMUTT002:

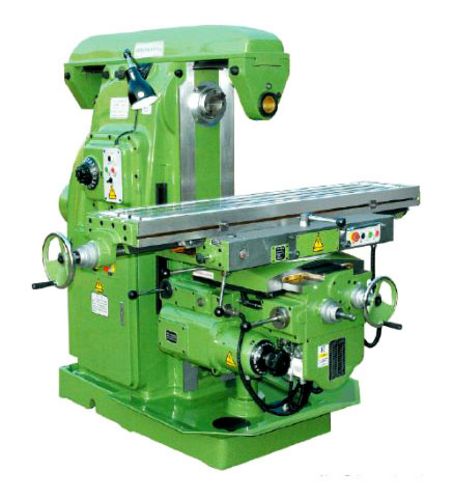

New, China X6132 Universal Knee-Type Milling Machine

  • Table size 320 x 1325mm
  • Max longitudinal travel: Manual 700mm; Auto 680mm
  • Max cross travel: Manual 255mm; Auto 240mm
  • Max vertical travel: Manual 320mm; Auto 300mm
  • Max rotary angle of table ±45°
  • Distance between spindle and table surface 30/350mm
  • Spindle speed range 30-1500 rpm, off 18
  • Feed range of table travel 18
  • Table feed range: (X,Y,Z) 23.5-1180 / 23.5-1180 / 8-394
  • Main motor 7.5 kw
  • Feed motor 1.5 kw
  • 3 axis DRO
  • Overall Dimensions: 2,294 mm (L) x 1,770 mm (W) x 1,610 mm (H)
  • Weight approximately 2.7 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used universal milling machine (universal miller, universal milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
