Zhongyang Sams Universal Milling Machine


China XL6130 Universal Knee-Type Milling Machine

NMUTT001:

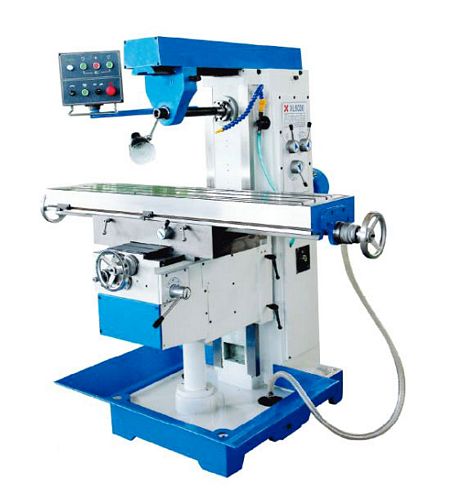

New, China XL6130 Universal Knee-Type Milling Machine

  • Table size 1270  x 300mm
  • Table travel: (X,Y,Z) 720/300/400mm
  • Spindle taper 7:24 ISO 40
  • Rapid speed of table (X,Y,Z): infinite
  • Table feed ( X,Y,Z): infinite
  • T-slots (no./width/pitch) 3/14/80
  • Spindle speed range: 35-1500 rpm, off 12
  • Distance between spindle nose and table surface 30-430mm
  • Distance between spindle axis and ram surface 155mm
  • Max rotary angle ±45°
  • Main motor 3 kw
  • X/Y/Z to feed AC servo motor torque 7.7 n.m
  • 3 axis DRO
  • Overall Dimensions: 1,720 mm (L) x 1,680 mm (W) x 1,730 mm (H)
  • Weight approximately 1.6 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used universal milling machine (universal miller, universal milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
