Zhongyang Sams Universal Milling Machine

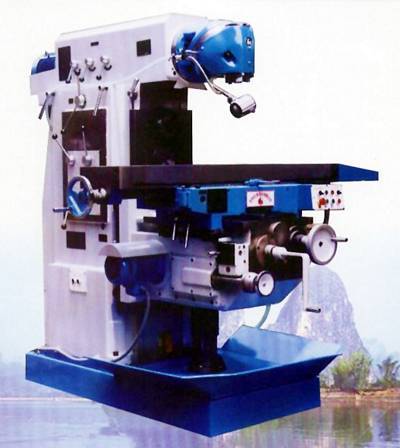

China X6440A/1 Universal Swivel Head Milling Machine

NMUAM001:

New, China Universal Swivel Head Milling Machine

  • Working Table 1600x400 mm, 3 T-Slots
  • Traverse Longitudinal 1100 mm, by Hand or Power
  • Traverse Cross 335 mm, by Hand or Power
  • Rise & Fall 475/455 mm, by Hand/Power
  • Horizontal Spindle Taper ISO 50
  • Universal Spindle Taper ISO 50
  • Milling Head Swivels 360 degrees
  • Spindle Speeds (Horizontal Spindle) 30-1525 RPM, Off 18
  • Spindle Speeds (Universal Spindle) 40-1800 RPM, Off 12
  • Distance Between Vertical Guideway Surface and Table Center 220-555 mm
  • Distance Between Horizontal Spindle and Table Surface 0-475 mm
  • Adjustable Distance Between Spindle of Universal Head & Vertical Guideway 210-685 mm
  • Feed Range Long & Cross 22-1028 mm/min, Vertical 9-400 mm/min
  • Rapid Feeds Long/Cross/Vertical 2350/2350/915 mm/min
  • Main Motor Power 7.5 kW
  • Main Motor Power of Ram 4 kW
  • Torque of Feed Motor 1.5 Nm
  • Overall Dimensions: 2,360 mm (L) x 1,950 mm (W) x 2,100 mm (H)
  • Weight approximately 3.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used universal milling machine (universal miller, universal milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
