Zhongyang Sams Turret Milling Machine

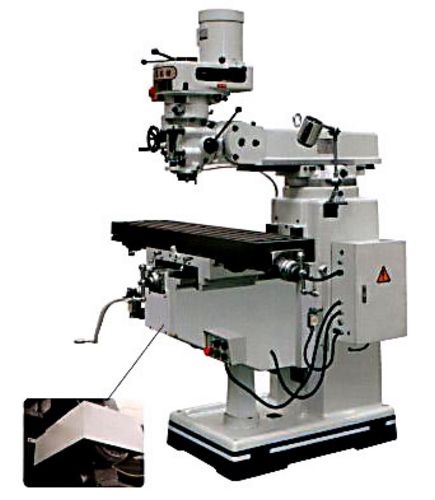

China X6330 Turret Milling Machine

NMTZC017:

New, China X6330 (12" x 60") Turret Milling Machine

  • Table size 305 x 1500mm
  • Longitudinal travel 1000mm
  • Cross travel 380mm
  • Vertical travel 430mm
  • T-slot no. and size 3 x 16
  • Ram travel 500mm
  • Distance from spindle nose to table surface 0-350mm
  • Spindle hole taper ISO40
  • Spindle travel 127mm
  • Spindle speed (50 HZ) 65-4500 rpm; (60 HZ) 80-5440 rpm
  • Auto quill feed 0.04 (0.0015")/0.08 (0.003")/0.15 (0.006") mm/r, 3 steps
  • Spindle motor 3.75 kw / 5 HP
  • Head swivel 90°
  • Head tilting 45°
  • Weight approximately 1.7 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used turret milling machine (vertical turret milling machine, turret miller, turret milling), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
