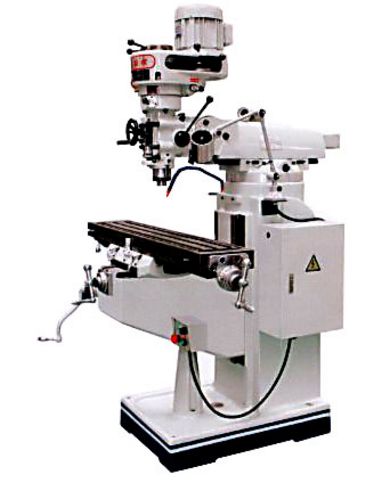

New, China X6323A (9" x 49") Turret Milling Machine
- Table size 230 x 1246mm
- Longitudinal travel 840mm
- Cross travel 305mm
- Vertical travel 400mm
- T-slot no. and size 3 x 16
- Ram travel 312mm
- Distance from spindle nose to table surface 0-415mm
- Spindle hole taper R8 (optional ISO30/40)
- Spindle travel 127mm
- Spindle speed (50 HZ) 65-4500 rpm; (60 HZ) 80-5440 rpm
- Auto quill feed 0.04 (0.0015")/0.08 (0.003")/0.15 (0.006") mm/r, 3 steps
- Spindle motor 2.25 kw / 3 HP
- Head swivel 90°
- Head tilting 45°
- Weight approximately 1.1 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
